Products Description

Large workshops are long, wide, and hot - and they usually cannot be cooled by air conditioning at an affordable running cost. This geared-motor HVLS fan solves that with spot-free, whole-floor cooling. A Nord (Germany) integrated gear-motor drives aviation aluminum-magnesium alloy airfoil blades at roughly 50 rpm (max 55–100 RPM by model), controlled by a Danfoss (Denmark) or ABB (Switzerland) variable-frequency drive rated for high temperature, dust, oil fume, and long-hour running. The fan pushes a wide vertical air column down to floor level, where it spreads into a 1–3 m horizontal air layer at an adjustable 1–5 m/s. Because the airflow is broad and slow, it reaches every corner of a 2,000+ m² open workshop rather than creating one cold spot and a dozen dead zones. Dual-row deep groove ball bearings reduce gear-motor load, and high-strength bolts, dual-protection 1,000 kg wire ropes, a safety ring, integral blade-chassis construction, and VFD auto alarm keep the unit safe overhead. When paired with existing AC, the same fan saves 30%+ energy.

Large workshop buyers often need their own branding, mounting details, and voltage adapted to the local plant. We support OEM/ODM and private label, manufacturing to customer technical drawings or prototypes so the fan matches the workshop's power supply, beam type, and floor plan. This is how a generic HVLS fan becomes a workshop-specific cooling solution.

Specifications

Parameter	Specification
Blade diameter	2000–7300 mm
Blade count	5–10
Motor power	0.55–1.5 kW
Max speed	55–100 RPM
Air volume	900–18,700 m³/min
Coverage area	55–1,150 m²
Weight	75–165 kg
Rated voltage	3-phase 380 V / single-phase 220 V

Applications

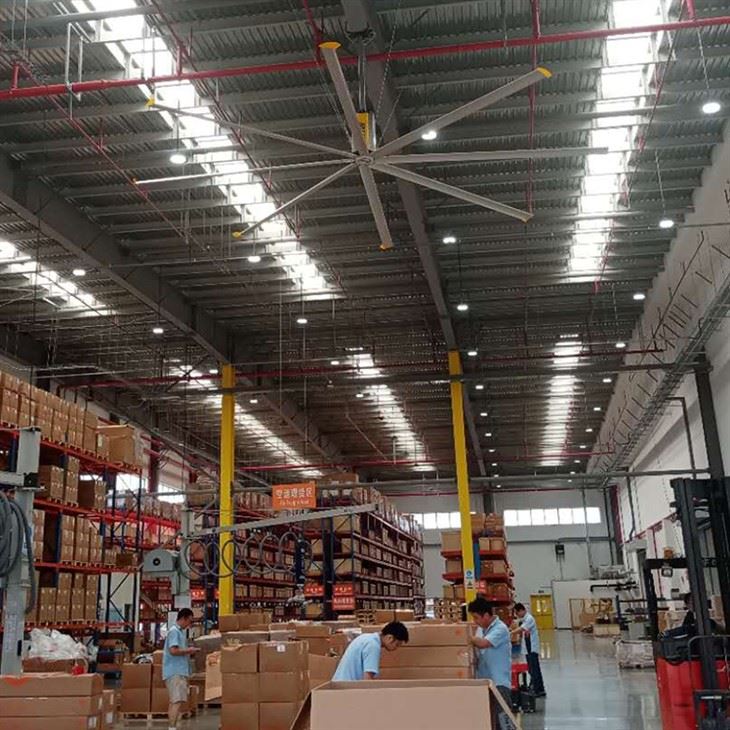

Fabrication and welding workshops

wide, slow airflow cools operators across the floor without blowing fumes or welding arcs around.

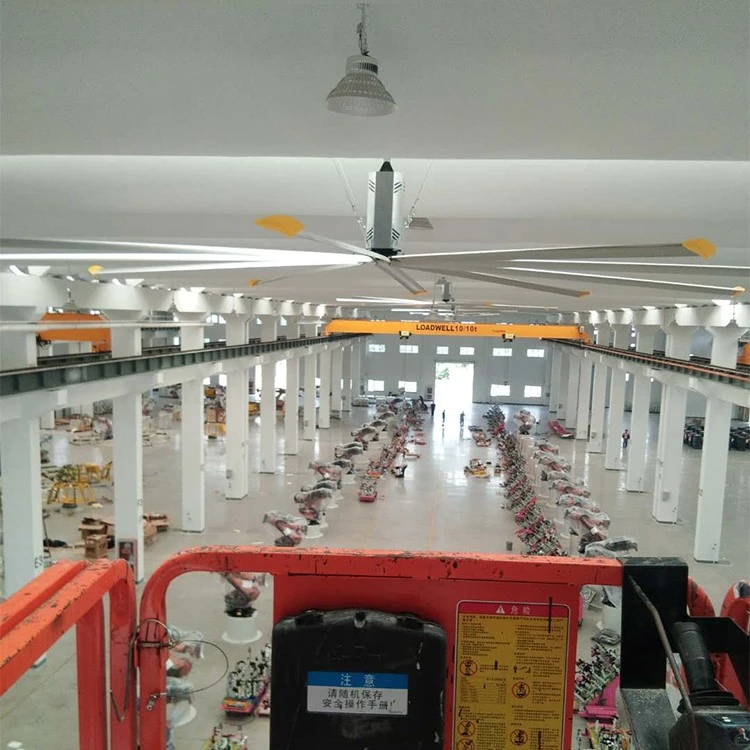

Large assembly bays

one fan covers a huge footprint, eliminating hot spots between workstations.

Woodworking and machining halls

low-speed, even air movement keeps comfort steady without disturbing dust-sensitive operations.

Customization

OEM/ODM and private label; manufactured per customer technical drawings or prototypes.
Blade diameter 2000–7300 mm and blade count 5–10 to match workshop width and bay height.
3-phase 380 V or single-phase 220 V.
Mounting on H-beam, I-beam, RC square beam, or round tube; ≥ 0.2 m clearance from obstacles.

Packaging & Transportation

Each fan ships in a fumigation-free plywood wooden case under EXW, FOB, DDP, or CIF terms. Every unit is fully tested and 100% inspected before packing.

FAQ

Q1. How is the product packed and shipped?

A: Standard packaging is fumigation-free plywood wooden cases. Trade terms include EXW, FOB, DDP, and CIF.

Q2. What is the warranty?

A: We provide a 3-year whole-unit warranty. Free replacement parts are supplied during warranty except for misuse; shipping damage affecting use is covered by free parts.

Q3. What is the MOQ?

A: The MOQ is 1 unit, and mixed colors or models are allowed.
