Products Description

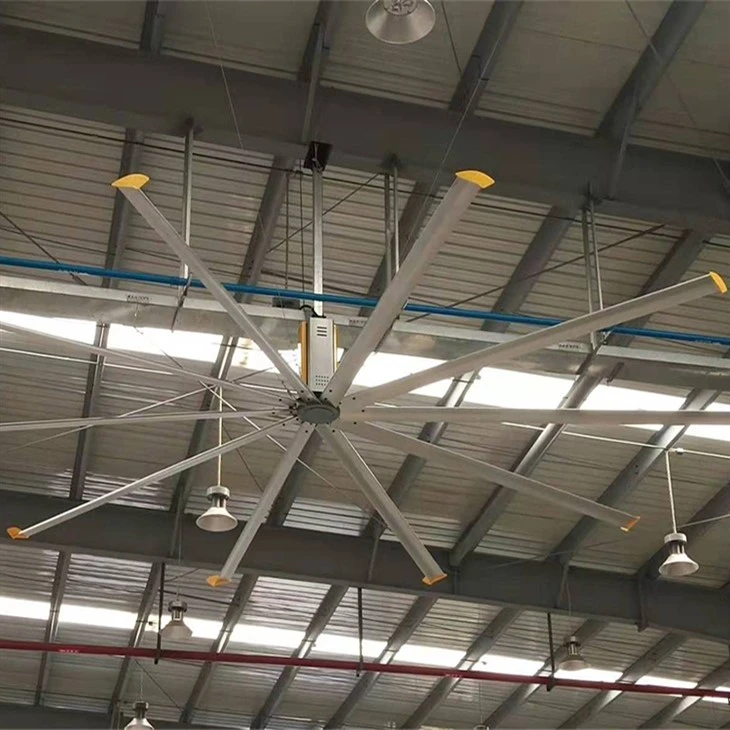

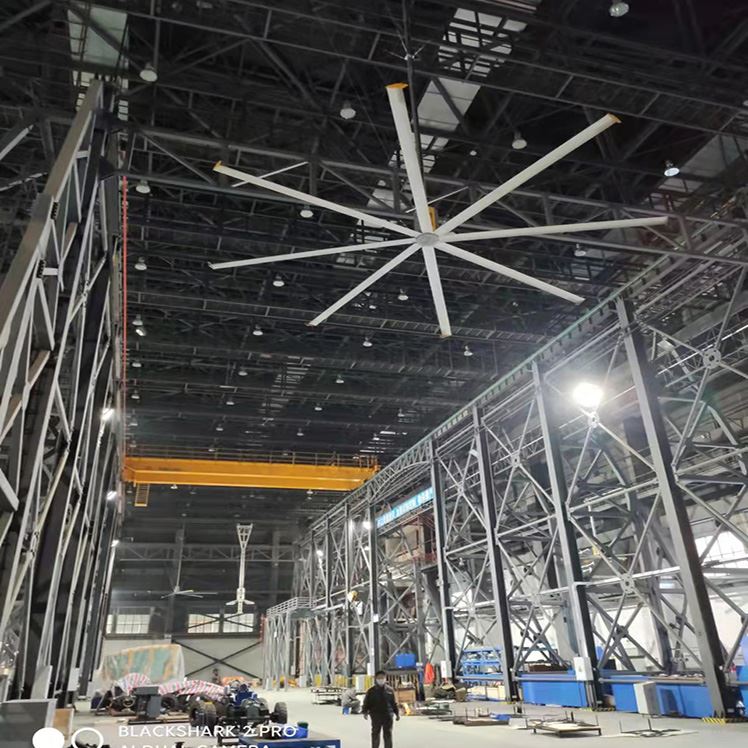

An airfoil blade industrial fan is optimized for one thing: turning motor power into moving air as efficiently as possible. Each blade is shaped as an airfoil rather than a flat paddle, and a streamlined tail wing sits behind it to reduce drag and turbulence at the tip. That aerodynamic shape is why a 0.55–1.5 kW Nord integrated gear-motor can sweep blades up to 7.3 meters across while running quietly and maintenance-free, instead of burning energy pushing against air resistance. The aviation aluminum-magnesium alloy blades hold the airfoil profile true at the roughly 50 rpm operating speed, pushing a vertical column that flattens into a 1–3 m high horizontal layer covering 2,000+ m², with adjustable 1–5 m/s breeze. A Danfoss or ABB variable-frequency drive governs speed for long-hour, dust- and oil-fume duty, and dual-row deep groove ball bearings at the shaft sleeve reduce load on the gearbox and protect the oil seal.

When a buyer wants a specific aerodynamic or cosmetic layout, our prototype and sample support lets you see the airfoil shape and feel the airflow before scaling up: a custom sample develops in about one week, so the blade count and angle can be confirmed against the space rather than assumed from a catalog.

Specifications

Parameter	Specification
Blade profile	Airfoil with streamlined tail wing
Blade material	Aviation aluminum-magnesium alloy
Blade diameter	2000–7300 mm
Blade count	5–10
Motor power	0.55–1.5 kW
Max speed	55–100 RPM
Air volume	900–18,700 m³/min
Coverage	55–1,150 m²
Weight	75–165 kg

Applications

Energy-conscious plants running paired with AC

the low-drag airfoil converts more input power to airflow, supporting the 30%+ energy saving when used with air conditioning.

Quiet zones such as waiting halls and offices

streamlined blades and the quiet Nord gear-motor keep the fan audible only as a gentle breeze.

Spaces where ceiling height allows slow, deep air movement

the airfoil disc pushes a deep column that reaches the floor rather than churning air near the ceiling.

Customization

OEM/ODM and private label, built from customer drawings or prototypes.

Blade diameter 2000–7300 mm and blade count 5–10 configurable.

380 V three-phase or 220 V single-phase.

Mounting on H-beam, I-beam, RC square beam or round tube.

Packaging & Transportation

Airfoil-bladed fans are packed in fumigation-free plywood wooden cases, fully tested before shipment, and delivered under EXW, FOB, DDP or CIF.

FAQ

Q1. Are samples available?

A: Yes, samples are chargeable, and custom sample development takes about one week.

Q2. What is the warranty period?

A: The whole unit is covered for 3 years. Free replacement parts are supplied during the warranty period except for misuse, and shipping damage affecting use is covered with free parts.

Q3. Which currencies and payment terms do you accept?

A: We accept USD and RMB, with terms of 30% deposit plus 70% before shipment, 50% plus 50%, or 100% upfront.
