Products Description
This geared-motor HVLS (High Volume Low Speed) fan is a large variable-frequency ceiling fan built for tall buildings where ordinary fans cannot reach the occupied zone. A Nord (Germany) integrated gear-motor delivers strong, steady torque through a set of aviation aluminum-magnesium alloy airfoil blades, while a Danfoss (Denmark) or ABB (Switzerland) variable-frequency drive keeps speed smooth and adjustable from roughly 50 rpm up to 55–100 rpm by model. The airfoil blades and streamlined tail wing minimize drag, pushing a wide, slow air column vertically downward that spreads into a 1–3 m high horizontal air layer at 1–5 m/s, covering 2,000+ m² of open space from a single unit. Dual-row deep groove ball bearings at the shaft sleeve reduce gear-motor load, stabilize the main shaft, and protect the gear oil seal. Safety hardware is engineered in: high-strength industrial bolts with actual stress reaching 10× the rated value, 1,000 kg wire ropes with dual protection at every connection, a safety ring against falling parts, blades integral with the chassis, and VFD auto alarm and stop on abnormality. We back every unit with 100% pre-shipment testing and full inspection, and we welcome third-party inspection before shipment so buyers receive a fan they can install and run with confidence.
Because this product runs for long hours overhead, structural consistency matters as much as performance. We manufacture to customer technical drawings and prototypes, and our in-house R&D team supports the structural layout, mounting configuration, and electrical adaptation so each fan matches the buyer's beam type, voltage, and ceiling height rather than forcing the site to fit a generic unit. Combined with our fully tested-outgoing policy and acceptance of third-party inspection, buyers get a reliable, traceable geared-motor HVLS fan with clear quality control behind it.
Specifications
|
Parameter |
Specification |
|
Blade diameter |
2000–7300 mm |
|
Blade count |
5–10 |
|
Motor power |
0.55–1.5 kW |
|
Max speed |
55–100 RPM |
|
Air volume |
900–18,700 m³/min |
|
Coverage area |
55–1,150 m² |
|
Air speed |
1–5 m/s adjustable |
|
Weight |
75–165 kg |
|
Certification |
To Be Confirmed |
Applications

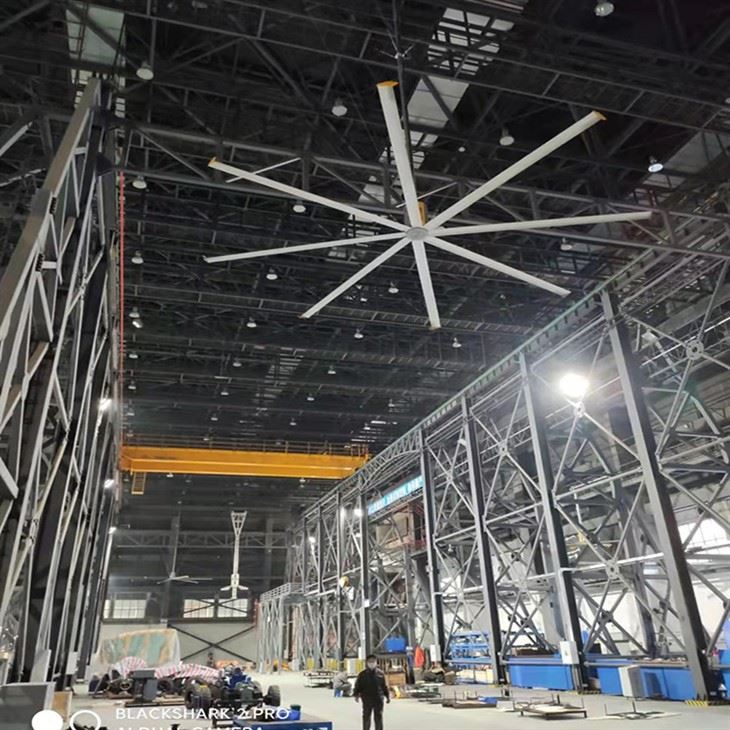

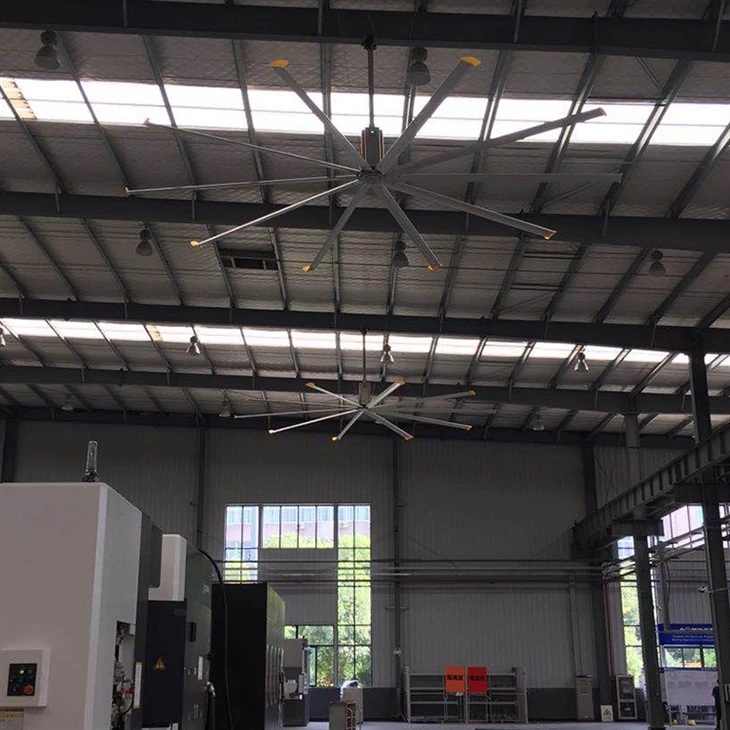

Industrial plants with tall bays
the slow air column reaches floor level and breaks up stagnant heat, so operators and line crews feel consistent movement without high-speed drafts.
Logistics warehouses
one unit covers a very large footprint, moving trapped air across racking aisles where spot coolers cannot reach.
Exhibition halls and waiting halls
quiet, gentle airflow keeps visitors comfortable without disrupting displays or noise-sensitive environments.
Customization
OEM/ODM and private label supported; we manufacture per customer technical drawings or prototypes.
Blade diameter 2000–7300 mm and blade count 5–10 configurable to match ceiling height and required coverage.
Power supply options: 3-phase 380 V or single-phase 220 V.
Mounting support for H-beam, I-beam, RC square beam, and round tube structures.
Packaging & Transportation
Units are packed in standard fumigation-free plywood wooden cases. We trade on EXW, FOB, DDP, or CIF terms, and every unit is fully tested and 100% inspected before shipment.
