Products Description

The variable frequency PMSM fan in our DCHVLS range pairs a gearless permanent-magnet synchronous motor with an electronic variable-frequency controller, so airflow is adjustable rather than simply on or off. The controller delivers a clean sine-wave output that ramps the motor up and down smoothly, and it supports continuous speed regulation across the operating range to match comfort or process needs at different times of day. Because the motor is gearless, the electronic signal drives the rotor directly through a stepped anti-drop motor shaft - larger at the bottom, smaller at the top - with no gearbox to lag or whine. Double-row angular-contact bearings and enamel-coated pure copper windings keep the drive stable across repeated speed changes, and the original 3D convection cooling structure holds temperature rise low enough to prevent demagnetization over long duty cycles.

Structural customization matters most when a variable-frequency fan is going into a space that was not designed for it. We adapt the mounting structure, blade count and motor rating to your roof beams, ceiling height and airflow target rather than pushing a fixed catalog size onto your building. The same gearless PMSM platform can be built as a 2000 mm single unit or a 7300 mm multi-fan parallel system, with the variable-frequency control tuned to your voltage and frequency at our end, so the controller and mechanical structure arrive as a matched set.

Specifications

Parameter	Specification
Drive type	Gearless PMSM direct drive with electronic variable-frequency control
Blade diameter	2000–7300 mm
Blade count	5–8
Motor power	0.4–1.8 kW
Power supply	380 V 3-phase / 220 V single-phase, 50/60 Hz
Max speed	55–120 RPM (speed adjustable via VFD)
Air volume	2,560–15,000 m³/min
Coverage	50–920 m²
Output waveform	Sine wave, smooth start and stop
Mounting	Clamped to roof beams, ≥ 4.5 m floor height

Applications

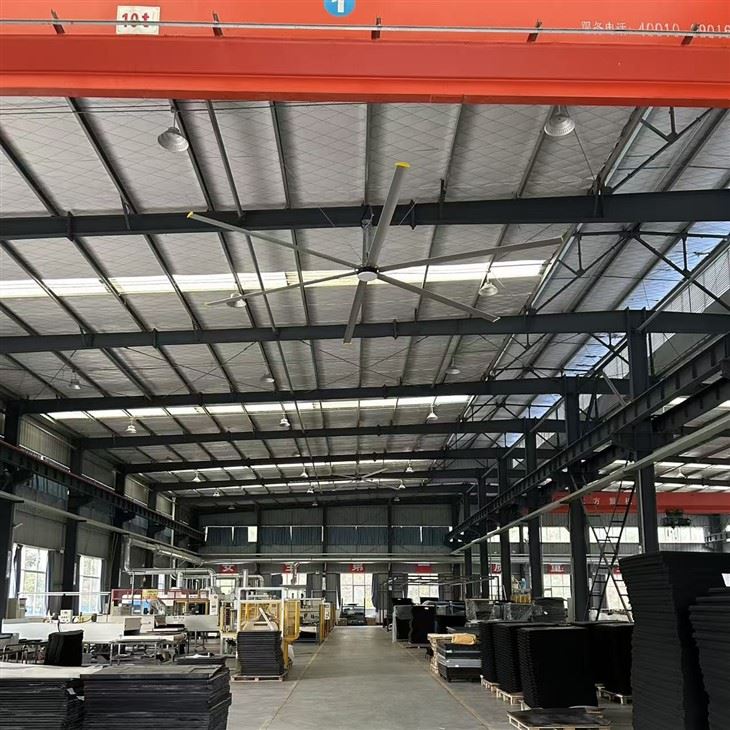

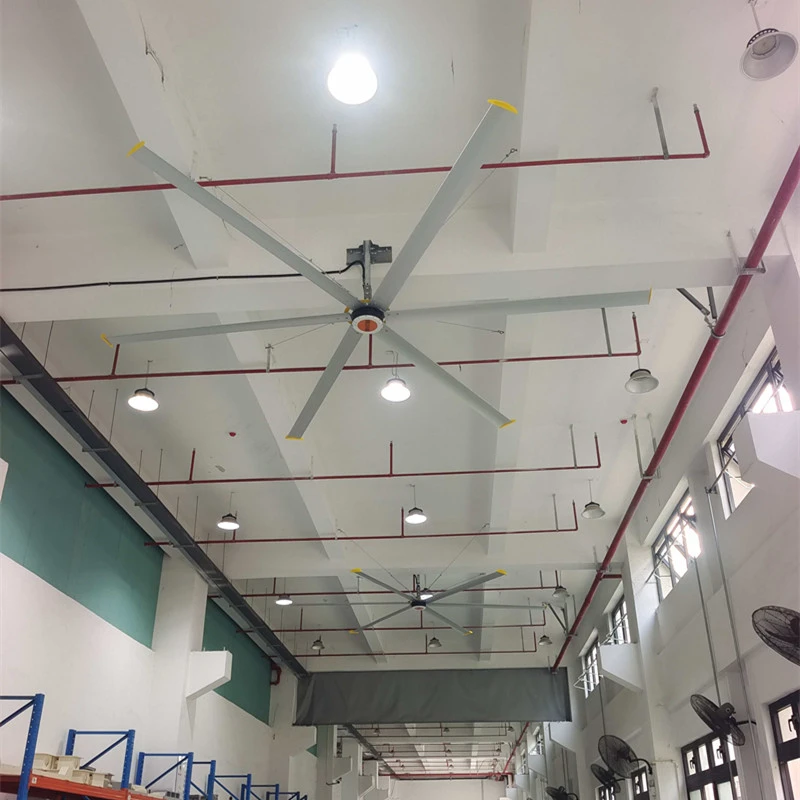

Multi-zone production floors

variable-frequency speed lets one or more fans be tuned to each shift or production stage instead of running at a fixed, often excessive, speed all day.

Temperature-sensitive workshops

adjustable airflow lets operators raise circulation when loads rise and reduce it when rooms are lightly manned, avoiding overcooling of sensitive processes.

Semi-open bays

with the fan pulling roof air down and drawing in outdoor fresh air, variable speed lets facilities teams balance intake against exhaust through the day.

Customization

Structural customization of mounting brackets, blade count and motor rating to your roof beams and ceiling height.
Blade diameter from 2000 to 7300 mm with 5 to 8 blades, configured to your coverage target.
Variable-frequency control supplied for 380 V 3-phase or 220 V single-phase at 50/60 Hz, motor power 0.4–1.8 kW.
OEM/ODM and private-label builds, manufactured to your technical drawings or prototypes.

Packaging & Transportation

Each fan is 100% tested before shipment and packed in fumigation-free plywood wooden cases. We ship on EXW, FOB, DDP or CIF terms, and third-party inspection is welcomed.

FAQ

Q1. Do you offer OEM/ODM service?

A: Yes, we support OEM/ODM and private-label orders and manufacture to your technical drawings or prototypes, with mixed colors and models allowed.

Q2. What is the minimum order quantity?

A: MOQ is 1 unit, which makes it practical to start with a single variable-frequency fan for a trial installation before scaling to multiple units.

Q3. How long is the lead time?

A: Standard units take about one week, and custom configurations also lead in about one week. Monthly production capacity is 1,500–2,000 units, with photo and video progress updates provided.
