Product Overview
High volume low speed industrial fan is an integrated equipment of "customized power module + fan blade" specially designed for industrial large fans, with blade diameters of 3.0-6.1m. The core feature of high volume low speed industrial fan is "motor customization and multi-scenario adaptability", which can customize parameters such as reduction ratio, power, and protection level according to user needs, realizing a flexible "one-model multi-configuration" solution.
Core Advantages
Full-Parameter Customization
It supports full-parameter customization of reduction ratio (1:50-1:200), motor power (0.55-2.2KW), protection level (IP54-IP67), and speed (40-100RPM), which can adapt to special working conditions such as high temperature, high humidity, and high dust, with a customization cycle of only 7-10 days.
Strong Module Compatibility
It adopts standardized installation interfaces, and the fan blades and motor modules can be quickly disassembled and replaced. The same installation bracket can adapt to fan blades of different diameters (3.0-6.1m), eliminating the need to reinstall brackets during later workshop transformation and reducing transformation costs.
Special Motor Optimization
The motor is customized for the load characteristics of industrial large fans, with the rotor made of high-silicon steel sheets and the stator winding made of high-temperature resistant copper wire, which can withstand the instantaneous heavy load during fan blade start-up, and the motor's overload capacity reaches 120% to avoid start-up burnout.
Full-Life Cycle Service
It provides full-life cycle services of "customization-installation-maintenance-upgrade", with a 5-year motor warranty. Later, the fan performance can be upgraded (such as adding frequency conversion function) by replacing the motor module, extending the overall service life of the equipment to more than 10 years.
Application Occasions

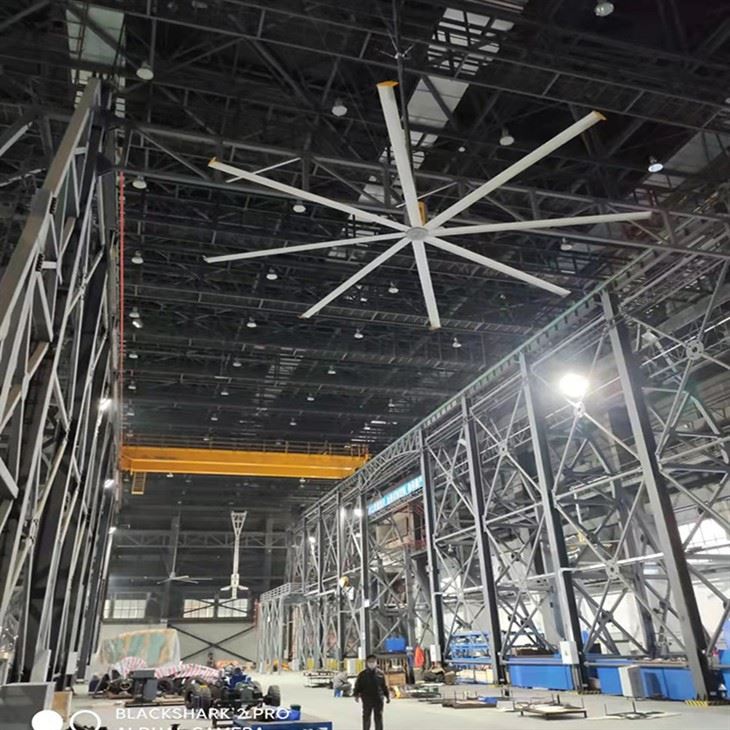

Suitable for diverse scenarios such as industrial workshops with special working conditions (e.g., high-temperature kiln workshops, high-humidity electroplating workshops, high-dust mining workshops), non-standard customized plants, old fan upgrade and renovation projects, and customized ventilation projects exported overseas.
Industrial Fans Technical Specification Table
|
Model |
Fan Blade Diameter |
Number of Blades |
Motor Power |
Maximum RPM |
Weight |
Air Volume |
Coverage Area |
|
HVLS FAN7300-10 |
7300mm |
10Blade |
1.5KW |
55RPM |
165KG |
18700m³/min |
1150㎡ |
|
HVLS FAN7300-8 |
8Blade |
145KG |
15000m³/min |
900㎡ |
|||
|
HVLS FAN7300-6 |
6 Blade |
140KG |
13500m³/min |
850㎡ |
|||
|
HVLS FAN7300-5 |
5 Blade |
135KG |
13000m³/min |
800㎡ |
|||
|
HVLS FAN6700-10 |
6700mm |
10 Blade |
1.5KW |
55RPM |
155KG |
15600m³/min |
960㎡ |
|
HVLS FAN6700-8 |
8 Blade |
140KG |
12500m³/min |
770㎡ |
|||
|
HVLS FAN6700-6 |
6 Blade |
135KG |
11000m³/min |
670㎡ |
|||
|
HVLS FAN6700-5 |
5 Blade |
130KG |
10600m³/min |
650㎡ |
|||
|
HVLS FAN6100-10 |
6100mm |
10 Blade |
1.5KW |
75RPM |
150KG |
13000m³/min |
800㎡ |
|
HVLS FAN6100-8 |
8 Blade |
135KG |
10500m³/min |
650㎡ |
|||
|
HVLS FAN6100-6 |
6 Blade |
130KG |
9000m³/min |
550㎡ |
|||
|
HVLS FAN6100-5 |
5 Blade |
125KG |
8800m³/min |
520㎡ |
|||
|
HVLS FAN5500-10 |
5500mm |
10 Blade |
1.5KW |
75RPM |
145KG |
11000m³/min |
670㎡ |
|
HVLS FAN5500-8 |
8 Blade |
130KG |
8800m³/min |
540㎡ |
|||
|
HVLS FAN5500-6 |
6 Blade |
125KG |
7500m³/min |
460㎡ |
|||
|
HVLS FAN5500-5 |
5 Blade |
120KG |
7200m³/min |
420㎡ |
|||
|
HVLS FAN4900-10 |
4900mm |
10 Blade |
1.5KW |
75RPM |
140KG |
10500m³/min |
600㎡ |
|
HVLS FAN4900-8 |
8 Blade |
125KG |
7000m³/min |
430㎡ |
|||
|
HVLS FAN4900-6 |
6 Blade |
120KG |
6000m³/min |
370㎡ |
|||
|
HVLS FAN4900-5 |
5 Blade |
115KG |
5200m³/min |
330㎡ |
|||
|
HVLS FAN4500-10 |
4500mm |
10 Blade |
1.5KW |
75RPM |
130KG |
9500m³/min |
500㎡ |
|
HVLS FAN4500-8 |
8 Blade |
120KG |
6000m³/min |
370㎡ |
|||
|
HVLS FAN4500-6 |
6 Blade |
115KG |
5000m³/min |
300㎡ |
|||
|
HVLS FAN4500-5 |
5 Blade |
110KG |
4500m³/min |
260㎡ |
|||
|
HVLS FAN4200-10 |
4200mm |
10 Blade |
0.55KW |
100RPM |
125KG |
7200m³/min |
400㎡ |
|
HVLS FAN4200-8 |
8 Blade |
115KG |
5400m³/min |
300㎡ |
|||
|
HVLS FAN4200-6 |
6 Blade |
110KG |
4500m³/min |
250㎡ |
|||
|
HVLS FAN4200-5 |
5 Blade |
105KG |
4000m³/min |
230㎡ |
|||
|
HVLS FAN3600-10 |
3600mm |
10 Blade |
0.55KW |
100RPM |
120KG |
5000m³/min |
330㎡ |
|
HVLS FAN3600-8 |
8 Blade |
110KG |
3800m³/min |
230㎡ |
|||
|
HVLS FAN3600-6 |
6 Blade |
105KG |
3300m³/min |
200㎡ |
|||
|
HVLS FAN3600-5 |
5 Blade |
100KG |
3000m³/min |
180㎡ |
|||
|
HVLS FAN3000-8 |
3000mm |
8 Blade |
0.55KW |
100RPM |
95KG |
2700m³/min |
160㎡ |
|
HVLS FAN3000-6 |
6 Blade |
90KG |
2300m³/min |
140㎡ |
|||
|
HVLS FAN3000-5 |
5 Blade |
85KG |
2000m³/min |
120㎡ |
|||
|
HVLS FAN2500-6 |
2500mm |
6 Blade |
0.55KW |
100RPM |
85KG |
1600m³/min |
90㎡ |
|
HVLS FAN2500-5 |
5 Blade |
80KG |
1400m³/min |
85㎡ |
|||
|
HVLS FAN2000-6 |
2000mm |
6 Blade |
0.55KW |
100RPM |
80KG |
1000m³/min |
60㎡ |
|
HVLS FAN2000-5 |
5 Blade |
75KG |
900m³/min |
55㎡ |
