Product Overview
High volume industrial ceiling fans are ventilation equipment customized for the special working conditions of industrial plants such as "high dust, high temperature, dense equipment, and large personnel flow", with blade diameters of 5.5-7.3m and speeds of 50-70RPM, adopting a combined design of "dust-resistant motor + reinforced blades + ceiling adaptability". The core goal of high volume industrial ceiling fans is to achieve stable ventilation in complex industrial environments while balancing equipment protection and personnel safety.
Core Advantages
Strong Working Condition Adaptability
The motor adopts an IP65 protection level fully enclosed structure, the junction box is equipped with a dust-proof sealing rubber ring, and the blade surface is sprayed with wear-resistant and anti-static coating, which can resist the erosion of metal dust, wood chips, oil stains and other pollutants in the plant, extending the motor service life by 50%.
Flexible and Safe Ceiling Installation
It adopts an adjustable high-strength aluminum alloy ceiling bracket with a load-bearing capacity of up to 500KG, which can adjust the installation angle 360° according to the plant beam layout, avoiding equipment pipelines. The bottom of the bracket is equipped with an anti-falling device to meet the safety requirements of dense personnel and equipment in the plant.
High-Temperature Environment Tolerance
The motor has a built-in high-temperature protection module, which can operate stably in the environment of -20℃-60℃. The fan blades are made of high-temperature resistant fiberglass with a heat distortion temperature of 120℃, suitable for the ventilation needs of high-temperature workshops such as metallurgy and casting.
Large-Area Coverage Reduces Configuration
A single unit can cover 1200-1500㎡, reducing the number of installations by 80% compared with traditional wall-mounted fans, lowering the initial equipment investment and later maintenance costs, and avoiding ground equipment occupying production space.
Application Occasions

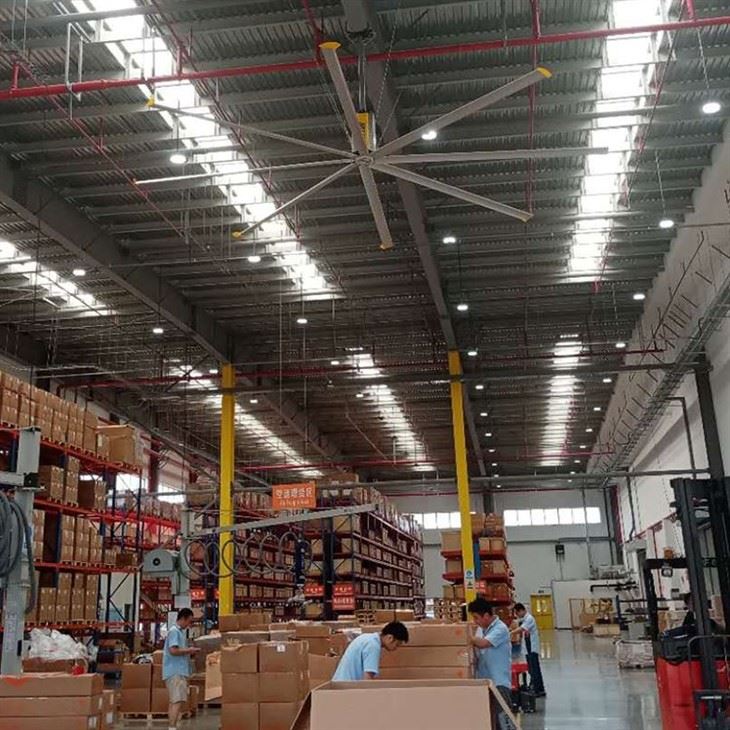

Specially designed for various industrial plants such as machinery processing workshops, metallurgical plants, casting workshops, automobile assembly workshops, hardware manufacturing workshops, electronic component production workshops, and furniture production workshops, especially suitable for production spaces with a height of 8-20m and existing dust or high temperature.
Industrial Fans Technical Specification Table
|
Model |
Fan Blade Diameter |
Number of Blades |
Motor Power |
Maximum RPM |
Weight |
Air Volume |
Coverage Area |
|
HVLS FAN7300-10 |
7300mm |
10Blade |
1.5KW |
55RPM |
165KG |
18700m³/min |
1150㎡ |
|
HVLS FAN7300-8 |
8Blade |
145KG |
15000m³/min |
900㎡ |
|||
|
HVLS FAN7300-6 |
6 Blade |
140KG |
13500m³/min |
850㎡ |
|||
|
HVLS FAN7300-5 |
5 Blade |
135KG |
13000m³/min |
800㎡ |
|||
|
HVLS FAN6700-10 |
6700mm |
10 Blade |
1.5KW |
55RPM |
155KG |
15600m³/min |
960㎡ |
|
HVLS FAN6700-8 |
8 Blade |
140KG |
12500m³/min |
770㎡ |
|||
|
HVLS FAN6700-6 |
6 Blade |
135KG |
11000m³/min |
670㎡ |
|||
|
HVLS FAN6700-5 |
5 Blade |
130KG |
10600m³/min |
650㎡ |
|||
|
HVLS FAN6100-10 |
6100mm |
10 Blade |
1.5KW |
75RPM |
150KG |
13000m³/min |
800㎡ |
|
HVLS FAN6100-8 |
8 Blade |
135KG |
10500m³/min |
650㎡ |
|||
|
HVLS FAN6100-6 |
6 Blade |
130KG |
9000m³/min |
550㎡ |
|||
|
HVLS FAN6100-5 |
5 Blade |
125KG |
8800m³/min |
520㎡ |
|||
|
HVLS FAN5500-10 |
5500mm |
10 Blade |
1.5KW |
75RPM |
145KG |
11000m³/min |
670㎡ |
|
HVLS FAN5500-8 |
8 Blade |
130KG |
8800m³/min |
540㎡ |
|||
|
HVLS FAN5500-6 |
6 Blade |
125KG |
7500m³/min |
460㎡ |
|||
|
HVLS FAN5500-5 |
5 Blade |
120KG |
7200m³/min |
420㎡ |
|||
|
HVLS FAN4900-10 |
4900mm |
10 Blade |
1.5KW |
75RPM |
140KG |
10500m³/min |
600㎡ |
|
HVLS FAN4900-8 |
8 Blade |
125KG |
7000m³/min |
430㎡ |
|||
|
HVLS FAN4900-6 |
6 Blade |
120KG |
6000m³/min |
370㎡ |
|||
|
HVLS FAN4900-5 |
5 Blade |
115KG |
5200m³/min |
330㎡ |
|||
|
HVLS FAN4500-10 |
4500mm |
10 Blade |
1.5KW |
75RPM |
130KG |
9500m³/min |
500㎡ |
|
HVLS FAN4500-8 |
8 Blade |
120KG |
6000m³/min |
370㎡ |
|||
|
HVLS FAN4500-6 |
6 Blade |
115KG |
5000m³/min |
300㎡ |
|||
|
HVLS FAN4500-5 |
5 Blade |
110KG |
4500m³/min |
260㎡ |
|||
|
HVLS FAN4200-10 |
4200mm |
10 Blade |
0.55KW |
100RPM |
125KG |
7200m³/min |
400㎡ |
|
HVLS FAN4200-8 |
8 Blade |
115KG |
5400m³/min |
300㎡ |
|||
|
HVLS FAN4200-6 |
6 Blade |
110KG |
4500m³/min |
250㎡ |
|||
|
HVLS FAN4200-5 |
5 Blade |
105KG |
4000m³/min |
230㎡ |
|||
|
HVLS FAN3600-10 |
3600mm |
10 Blade |
0.55KW |
100RPM |
120KG |
5000m³/min |
330㎡ |
|
HVLS FAN3600-8 |
8 Blade |
110KG |
3800m³/min |
230㎡ |
|||
|
HVLS FAN3600-6 |
6 Blade |
105KG |
3300m³/min |
200㎡ |
|||
|
HVLS FAN3600-5 |
5 Blade |
100KG |
3000m³/min |
180㎡ |
|||
|
HVLS FAN3000-8 |
3000mm |
8 Blade |
0.55KW |
100RPM |
95KG |
2700m³/min |
160㎡ |
|
HVLS FAN3000-6 |
6 Blade |
90KG |
2300m³/min |
140㎡ |
|||
|
HVLS FAN3000-5 |
5 Blade |
85KG |
2000m³/min |
120㎡ |
|||
|
HVLS FAN2500-6 |
2500mm |
6 Blade |
0.55KW |
100RPM |
85KG |
1600m³/min |
90㎡ |
|
HVLS FAN2500-5 |
5 Blade |
80KG |
1400m³/min |
85㎡ |
|||
|
HVLS FAN2000-6 |
2000mm |
6 Blade |
0.55KW |
100RPM |
80KG |
1000m³/min |
60㎡ |
|
HVLS FAN2000-5 |
5 Blade |
75KG |
900m³/min |
55㎡ |
