As a PMSM (Permanent Magnet Synchronous Motor) fan supplier, I understand the critical importance of reliability in these products. A reliable PMSM fan not only ensures smooth operation but also reduces maintenance costs and downtime for our customers. In this blog, I will share some effective strategies to improve the reliability of PMSM fans.
1. High - Quality Components Selection
The foundation of a reliable PMSM fan lies in the quality of its components. When sourcing materials, we should focus on high - grade permanent magnets, copper windings, and bearings.
- Permanent Magnets: High - energy - product permanent magnets, such as neodymium - iron - boron (NdFeB), can provide strong magnetic fields, which are essential for the efficient operation of the PMSM. These magnets should have high resistance to demagnetization, ensuring stable performance over a long period.
- Copper Windings: High - purity copper windings with low resistance can reduce heat generation during operation. This not only improves the efficiency of the motor but also extends its lifespan. We should ensure that the copper used meets strict quality standards and is properly insulated to prevent short - circuits.
- Bearings: High - quality bearings are crucial for the smooth rotation of the fan. They should be able to withstand high loads and operate with low friction. Sealed bearings can prevent dust and moisture from entering, reducing the risk of wear and tear.
2. Advanced Manufacturing Processes
Adopting advanced manufacturing processes can significantly enhance the reliability of PMSM fans.
- Precision Machining: Precise machining of the motor components, such as the stator and rotor, ensures proper alignment and reduces mechanical vibrations. This can be achieved through the use of high - precision CNC (Computer Numerical Control) machines, which can produce components with tight tolerances.
- Quality Control: Implementing a strict quality control system throughout the manufacturing process is essential. This includes in - process inspections, final product testing, and performance verification. For example, we can use advanced testing equipment to measure parameters such as motor efficiency, torque, and temperature rise.
3. Thermal Management
Effective thermal management is vital for the reliability of PMSM fans. Excessive heat can cause the demagnetization of permanent magnets, reduce the efficiency of the motor, and even lead to component failure.
- Heat Dissipation Design: Designing the fan with efficient heat dissipation structures, such as heat sinks and cooling fins, can help transfer heat away from the motor. The shape and size of these structures should be optimized to maximize the heat transfer area.
- Temperature Monitoring: Installing temperature sensors in the motor can allow real - time monitoring of the temperature. If the temperature exceeds a certain threshold, the fan can be automatically shut down or the speed can be adjusted to prevent overheating.
4. Electrical Protection
To improve the reliability of PMSM fans, it is necessary to provide adequate electrical protection.
- Over - current Protection: Over - current can damage the motor windings. Installing over - current protection devices, such as fuses or circuit breakers, can automatically cut off the power supply when the current exceeds a safe level.
- Over - voltage and Under - voltage Protection: Fluctuations in the power supply voltage can also affect the performance of the PMSM fan. Over - voltage and under - voltage protection circuits can be added to ensure that the motor operates within a safe voltage range.
5. Regular Maintenance and Monitoring
Regular maintenance and monitoring are key to ensuring the long - term reliability of PMSM fans.
- Scheduled Maintenance: Establishing a regular maintenance schedule, including cleaning, lubrication, and inspection of components, can prevent potential problems from developing. For example, bearings should be lubricated at regular intervals to reduce friction and wear.
- Remote Monitoring: With the development of IoT (Internet of Things) technology, we can implement remote monitoring systems for PMSM fans. These systems can collect and analyze data on the fan's operating parameters, such as speed, temperature, and vibration, in real - time. Any abnormal changes can be detected early, allowing for timely maintenance and repair.
6. Product Design Optimization
The design of the PMSM fan itself also plays an important role in its reliability.
- Aerodynamic Design: Optimizing the blade design can improve the efficiency of the fan and reduce noise. A well - designed blade can generate more airflow with less power consumption, which not only saves energy but also reduces the stress on the motor.
- Structural Design: The overall structure of the fan should be robust and stable. It should be able to withstand external forces, such as vibrations and shocks, without causing damage to the internal components.
7. Compatibility and Integration
When integrating PMSM fans into a larger system, compatibility is crucial.
- Control System Compatibility: The PMSM fan should be compatible with the control system used in the application. This includes ensuring that the fan can receive and respond to control signals correctly, such as speed adjustment and start/stop commands.
- System Integration: The fan should be integrated seamlessly into the overall system. This may involve considerations such as power supply compatibility, communication interfaces, and mechanical mounting.
Conclusion

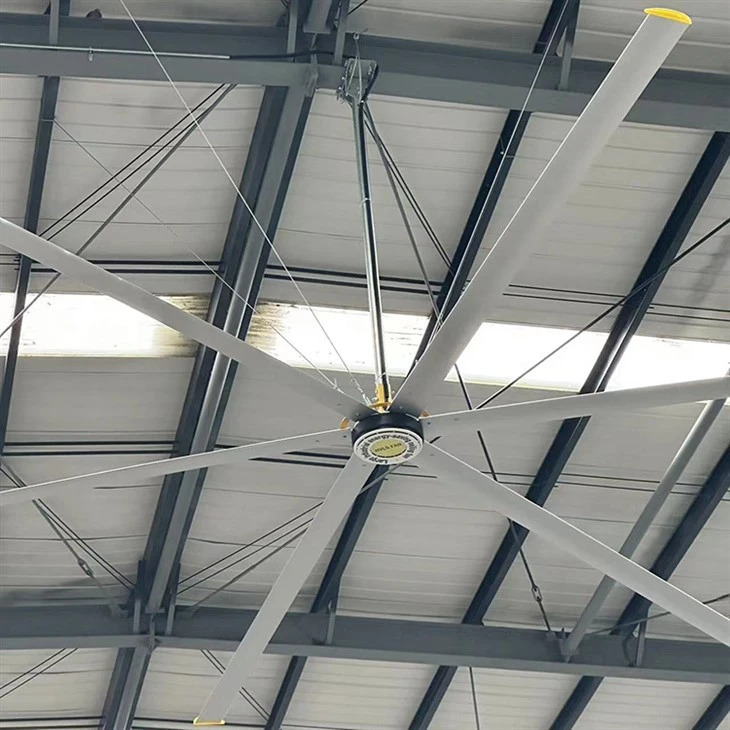

Improving the reliability of PMSM fans requires a comprehensive approach that covers component selection, manufacturing processes, thermal management, electrical protection, maintenance, design optimization, and system integration. As a PMSM fan supplier, we are committed to providing high - quality and reliable products to our customers. If you are interested in our Direct Drive PMSM Fan, 18 Feet PMSM Fan, or Large Commercial Ceiling Fan, please feel free to contact us for procurement and negotiation. We look forward to working with you to meet your specific needs.
References
- "Permanent Magnet Synchronous Motors: Design and Control" by P. Pillay and R. Krishnan.
- "Motor Handbook" by Arnold T. Helfrick and William D. Cooper.
- Various industry standards and technical papers on PMSM fan design and reliability.
