Products Description

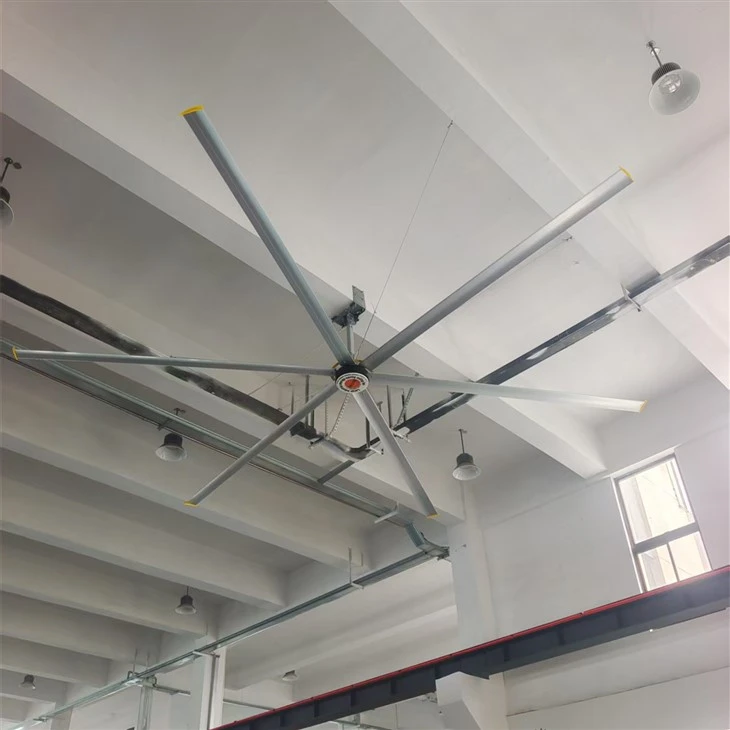

Our permanent magnet direct drive ceiling fan is built around a permanent-magnet synchronous motor (PMSM) coupled directly to the blade rotor, with no gearbox between them. A large-diameter rotor turns slowly and pushes omni-directional air movement across the floor, combining natural ventilation and cooling in one motion. The original 3D convection cooling structure keeps temperature rise ultra-low, which protects the permanent magnets from demagnetization, while the enamel-coated pure copper winding and double-row angular-contact bearings give the rotating set long service life. Start-up and shut-down are smooth with no jerk because the controller outputs a clean sine wave, and our speed-tracking restart technology lets the fan resume running smoothly without coming to a full stop.

Because a direct-drive rotor puts the magnet set, bearings and shaft geometry under continuous load, the mounting envelope matters as much as the motor itself. We manufacture these fans per customer technical drawings and prototypes, and our in-house R&D team supports structural adaptation so the clamped roof-beam installation, stepped anti-drop shaft and safety wire ropes fit your actual steel structure rather than a generic mounting plate. When a buyer specifies a direct-drive unit, they are buying into a transmission-free structure; that structure has to be reproduced consistently batch after batch, which is what our line is set up to do.

Specifications

Parameter	Specification
Blade diameter	2000–7300 mm
Blade count	5–8
Motor type	Permanent-magnet synchronous, gearless direct drive
Motor power	0.4–1.8 kW
Max speed	55–120 RPM
Air volume	2,560–15,000 m³/min
Max coverage	50–1500 m²
Power input	3-phase 380 V or single-phase 220 V, 50/60 Hz
Weight	28–128 kg

Applications

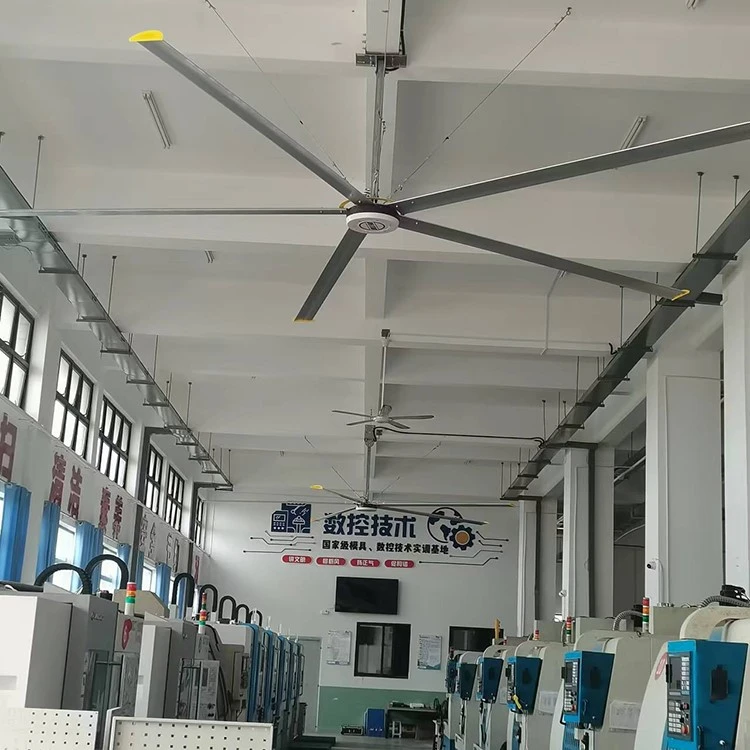

Industrial workshops

the slow, large-diameter rotor moves a broad column of air that breaks up hot stratification over workstations without blowing dust or paperwork around.

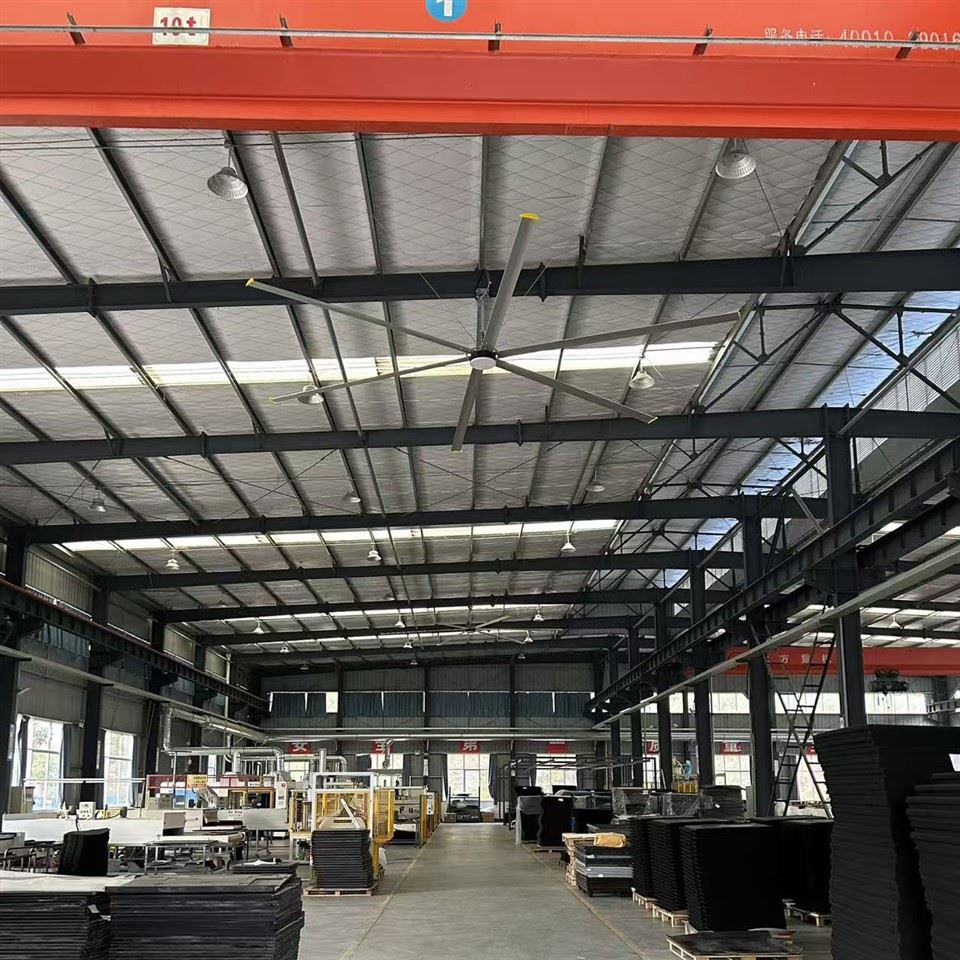

Logistics warehouses

one high-volume column replaces dozens of small fans, cooling pickers and forklift operators across a wide bay from a single ceiling point.

Semi-open plants

the fan pulls warm roof air down so outdoor fresh air fills the negative-pressure zone, keeping airflow moving even where walls are only partial.

Customization

OEM / ODM and private label supported; we manufacture to your technical drawings or prototypes.
Blade diameter from 2000 mm to 7300 mm, blade count 5–8.
Power input selectable between 3-phase 380 V and single-phase 220 V, 50/60 Hz.
Clamped mounting to roof structural beams, with national-standard steel sheets, high-strength bolts and safety wire ropes.

Packaging & Transportation

Units are packed in standard fumigation-free plywood wooden cases, every fan fully tested before shipment. We support EXW, FOB, DDP and CIF trade terms.
